SW520D Tilt sensor

In this example we are going to connect the Raspberry Pi or alternate board to tilt sensor. A tilt sensor is also sometimes called angle sensor.

This example is very easy and can run on same code as our vibration sensor example.

SW520D tilt sensor

DISCLAIMER

We do not take any responsibility for possible errors in the guide or errors that you might do wiring it up. Incorrect wiring can result in damaged sensor or damaged Raspberry Pi.

Pieces we use:

How this sensor works:

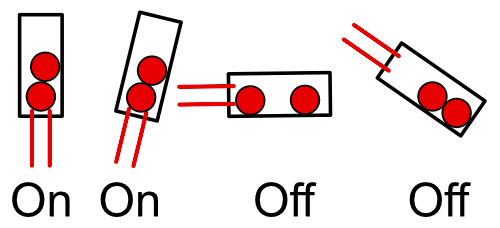

This sensor is basically a mechanical switch with metal balls inside. When the housing gets tilted the balls will close the circuit as shown on the picture above.

(Note that the signal on the brake-out board we use is reversed from what you might think from how the mechanical switch works, so the board will return Digital LOW when the switch is ON and Digital HIGH when the switch is Off.

Variations:


Different styles of SW520D

The sensor it self can come in different housings, some of whic hcan easily be confused with a capacitor.

The bakeout boards exist with one or two sensors on them, when there are two then you get two digital output channels.

Wiring:

If you have two channel sensor board and wish to use both channels then wired up the 2nd digital output to other GPIO pin.

Warning

When measuring up this sensor then it shows the digital output will have same voltage as the input. Meaning you  have to connect 3.3 V to the input when using with the Raspberry Pi.

The potentiometer on the board allows you to adjust the sensitivity of the DO output.

The board has PWR_LED and a DO_LED.

The sensor will have the PWR_LED showing that it is turned on.

The DO_LED lights up when the circuit it closed. (Sensor is standing upwards).

The sensor puts out digital HIGH when circuit is not closed, and digital LOW when circuit is closed.


Spec on this sensor is:

If you are not familiar with working with a breadboard or on how to place a cobbler on the breadboard then click here bellow

Breadboard


Note the picture is showing a vibration sensor since I did not have Fritzing part for the SW520D, but their wiring is 100% the same.
Raspberry Pi pin layout

If you need more information about the GPIO headers on Raspberry Pi or other boards then click bellow.

Raspberry Pi Pin guideOrange Pi One Pin guideOrange Pi Pin guide for most H3 modelsOrange Pi Zero 3 Pin  guideOrange Pi 5 Plus Pin guideRock 64 Pin guide

Raspberry Pi pin layout

The Xojo Code

Private mLineRequest As Gpiod.LineRequest

And then Opening event for the Window:

Sub Opening() Handles Opening
  try
    using Gpiod

    var chip as Chip = Chip.Open("/dev/gpiochip0")

    var lineRequest as LineRequest = RequestInputLine(chip, 5, "tilt-sensor")

    lineRequest.RequestReadEdgeEventsAsync(5, true, AddressOf LineMonitorCallback)

  catch e as GpiodException
    MessageBox(e.Message)
  end try
End Sub

Helper function to set up the line

Public Function RequestInputLine(chipHandle as Gpiod.Chip, lineOffset as UInt32, consumer as String) As Gpiod.LineRequest
  using Gpiod

  // Exceptions will be caught by the caller method

  var reqCfg as RequestConfig = nil

  var setting as new LineSetting()
  setting.Direction = Gpiod.Direction.INPUT
  setting.EdgeDetection = Gpiod.LineEdge.FALLING
  setting.Bias = Gpiod.LineBias.PULL_DOWN

  var lineCfg as new LineConfig()
  lineCfg.AddLineSetting(array(lineOffset),setting)

  if consumer <> "" then
    reqCfg = new RequestConfig()
    reqCfg.Consumer = consumer
  end if

  return chipHandle.RequestLines(reqCfg, lineCfg)
End Function

Callback for our events:

Public Sub LineMonitorCallback(edgeEvent as Gpiod.EdgeEvent)
  lstEvents.AddRow(if(edgeEvent.EventType = Gpiod.EdgeEventType.RISING_EDGE, "Rising", "Falling"))
  lstEvents.CellTextAt(lstEvents.LastRowIndex, 1) = edgeEvent.LineOffset.ToString()
  lstEvents.CellTextAt(lstEvents.LastRowIndex, 2) = edgeEvent.LineSequenceNumber.ToString
  lstEvents.CellTextAt(lstEvents.LastRowIndex, 3) = edgeEvent.TimestampNs.ToString()
End Sub

Getting the code

You can find this example code at Example code for GPIO guides.
