PIDevice_MAX7219_LED_MATRIX Xojo Plugin

PIDevice_MAX7219_8x8Symbol Class (console safe)



A class to represent custom symbol to draw on a MAX7219 LED Matrix.

This class exists on all the platforms for Cross compile purposes but it only actually does something on the Linux ARM target (Raspberry PI)

Object
   PIDevice_MAX7219_8x8Symbol

class PIDevice_MAX7219_8x8Symbol

Methods

Part (console safe) Sets or gets a single led in the matrix.
SetColumn (console safe) Populates whole column at once
SetRow (console safe) Populates whole row at once

Examples

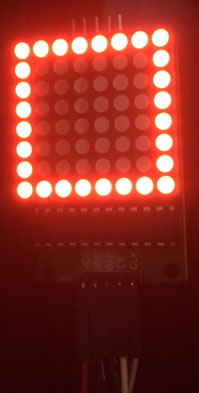

The symbol on the picture above was generated with this code:

Dim symbol as new PIDevice_MAX7219_8x8Symbol()

// Generate our symbol which will be just a frame
for y as Integer = 0 to 7
    for x as Integer = 0 to 7
       if y = 0 or y = 7 or x = 0 or x = 7 then
          symbol.Part(x,y) = true
       end if
    next
next

PIMatrix.SendSymbol(1,symbol)

Supported Platforms:

  • Linux ARM

    Unsupported Platforms:

  • MacOS X Carbon
  • MacOS X Cocoa 32 bit
  • MacOS X Cocoa 64 bit
  • Windows 32 bit
  • Windows 64 bit
  • Linux 32 bit
  • Linux 64 bit
